YHZS60 Mobile Concrete Batching Plant

Control system: Auto computer control, 1 set

PLC brand: SIMENS/OMRON

Electrical components: Relays, contactors, etc. SCHNEIDER make

Control console: Buttons, lamps, indicators, etc.

Air conditioner: 1 unit, GELI brand

Printer: 1 unit, EPSON or equivalent

Computer with control software: 1 unit

Description
YHZS60 Mobile Concrete Batching Plant:
With JS1000 double-shaft compulsory type concrete mixer, FOCUS YHZS60 mobile plant is our mid-sized mobile plant(60m3 output capacity per hour) boasting excellent features as follows:

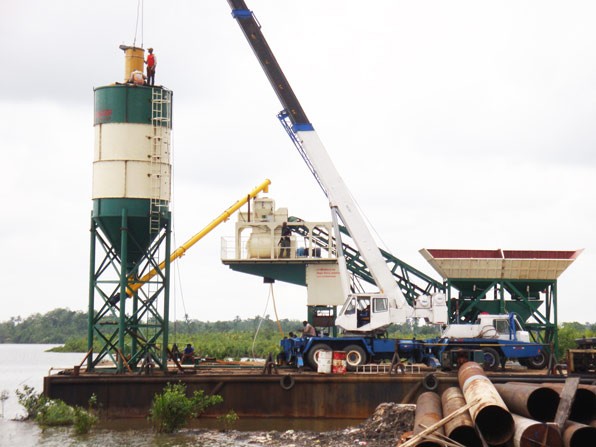

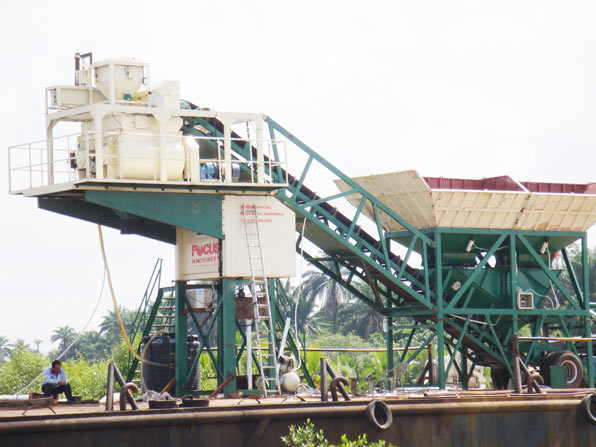

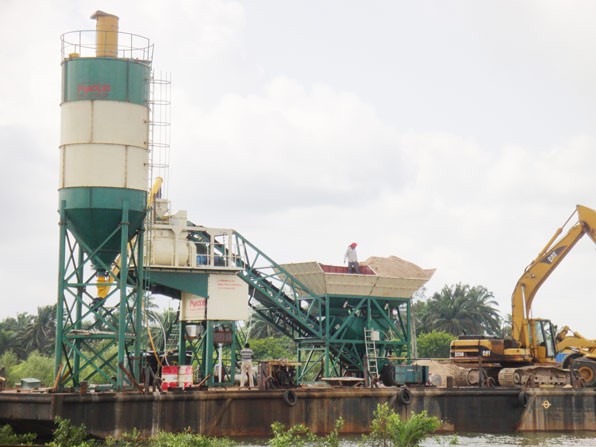

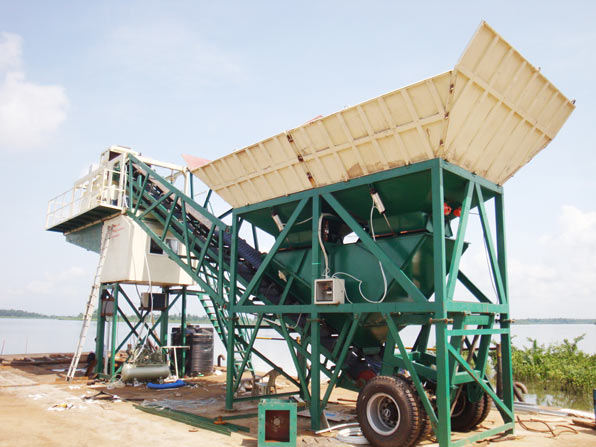

YHZS60 Mobile Concrete Batching Plant

01

Italian Technique Control system

Industrial computer with friendly user interface centralized monitoring. Multiple languages can be chosen;
02

Italian Technique Concrete mixer

Adopting SICOMA twin-shaft concrete mixer technologies, our JS1000 mixer has very strong and durable running performance.
03

Accurate Batching

Excellent weighing sensor guarantees the precision and stability of weighing.
04

Compact structure and all ready functions

Plant of this model is a combination of storing, weighing, transporting, mixing and controlling.
05

Convenient movement

Adopting pulling type different structuring way enables convenient movement.
06

Quick installation

Ready to run without special foundation and commissioning, which can save installation and commissioning time.
01

Container-type

structure design, Fast and easy installation, elegant appearance.



Parameter
Model YHZS60
Output capacity 60³/h
Overall power 85kw
Discharge height 3800mm
Max. hauling speed 40km/h
Warranty 13months after commissioning
After-sale service Guidance on erecting, commissioning and operator training, 24/7 technical assistance afterwards
Concrete mixer JS1000
Motor power 18.5kwX2
Mixing circle 60s
Discharge volume 1000L
Max. aggregate dia. 80mm
Aggregate batcher PLD1600
Storage hopper 2, 3 or 4 sorts
Weighing hopper 1600L
Aggregate weighing precision ±2%
Aggregate feeder Belt conveyor
Cement ±1%
Water ±1%
Additive ±1%
Control system Auto computer control, 1 set
PLC brand SIMENS/OMRON
Electrical components Relays, contactors, etc. SCHNEIDER make
Control console Buttons, lamps, indicators, etc.
Air conditioner 1 unit, GELI brand
Printer 1 unit, EPSON or equivalent
Computer with control software 1 unit
Uninterrupted Power Supply 1 unit
Pneumatic system 1 set
Air-compressor 0.6MPA
Triplet(oil-water separator) 1 set with a back-up spare
Solenoid valve 1 set with multiple contactor coils
Documentation 1 set
Spare parts included
Operation guide included
Maintenance brochure included
Electrical diagram/circuit included
