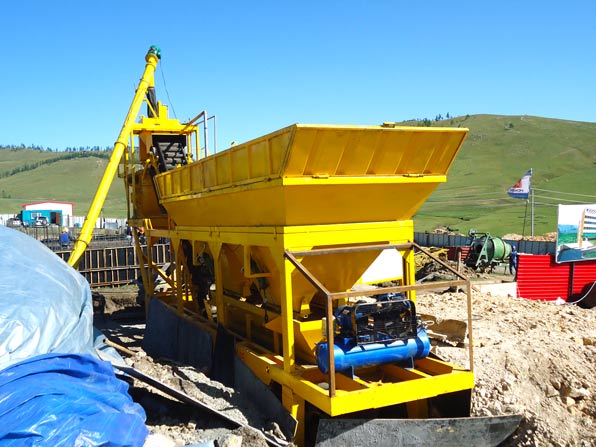

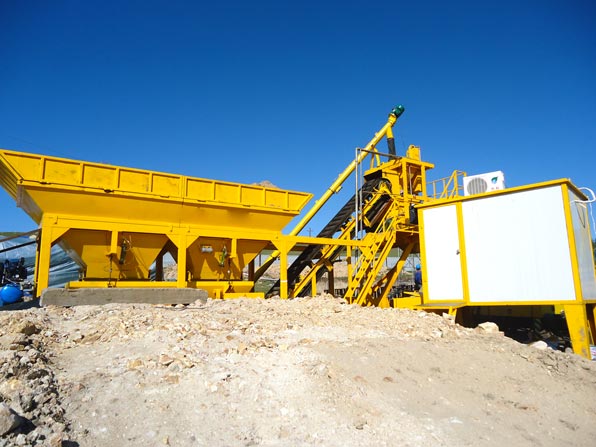

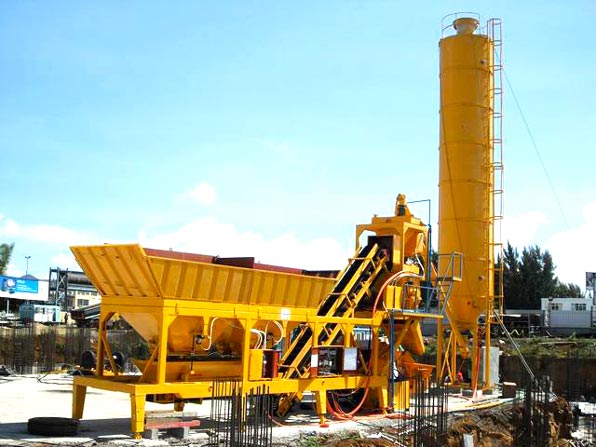

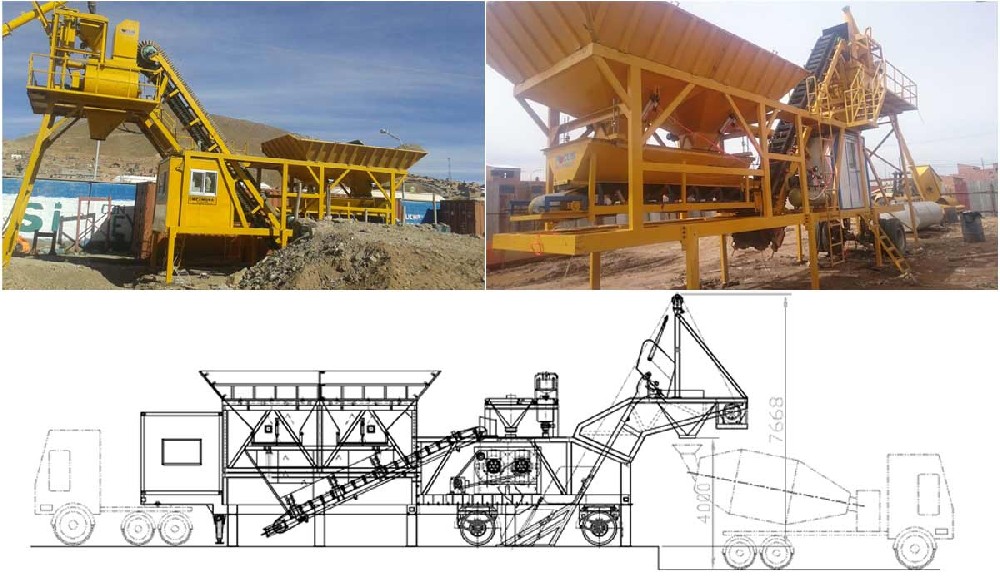

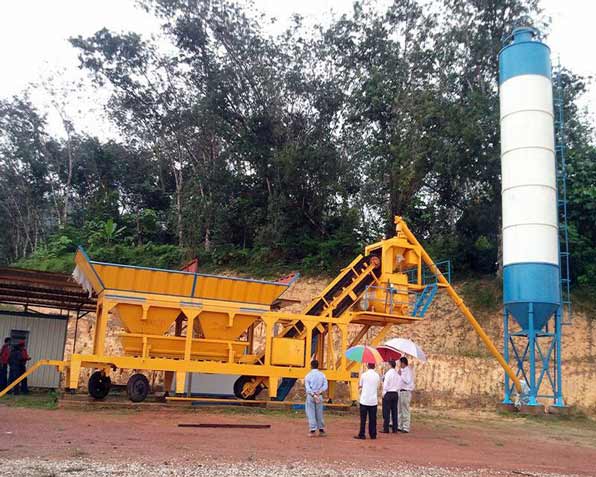

YHZS25 Mobile Concrete Batching Plant
Control system: Auto computer control, 1 set
PLC brand: SIMENS/OMRON
Electrical components: Relays, contactors, etc. SCHNEIDER make
Control console: Buttons, lamps, indicators, etc.
Air conditioner: 1 unit, GELI brand
Printer: 1 unit, EPSON or equivalent
Computer with control software: 1 unit
YHZS25 Mobile Concrete Batching Plant:
YHZS25, the smallest capacity(25m3/hr.) of the model series, has high mechanical and electrical integration of material feeding, weighing, mixing and discharging-whole concrete production process integrated in one whole modular of batching plant.
Features of YHZS25 Mobile Concrete Batching Plant:
Very small and compact ground occupation;
YHZS25 mobile concrete batching plant can be installed quickly on site. Composed of mixing system, batching system, transiting system, feeding system, weighing system, storage system and all the necessary equipment into together, installed on a transport chassis.
YHZS25 mobile concrete batching plant can be delivered to construction site in the hauling situation, then install quickly on site and get it to run without debugging.
Adopting new advanced technologies from overseas and domestic, accurate weighing, perfect mixing performance, fast delivery and convenient to move.
| Model | YHZS25 |
| Output capacity | 25³/h |
| Overall power | 40kw |
| Discharge height | 3800mm |
| Max. hauling speed | 40km/h |
| warranty | 13months after commissioning |
| After-sale service | Guidance on erecting, commissioning and operator training, 24/7 technical assistance afterwards |
| Concrete mixer | JS500 |
| Motor power | 18.5kw |
| Mixing circle | 72s |
| Discharge volume | 500L |
| Max. aggregate dia. | 80mm |
| Aggregate batcher | PLD800 |
| Storage hopper | 2, 3 or 4 sorts |
| Weighing hopper | 800L |
| Aggregate weighing precision | ±2% |
| Aggregate feeder | Belt conveyor |
| Cement | ±1% |
| Water | ±1% |
| Additive | ±1% |
| Control system | Auto computer control, 1 set |
| PLC brand | SIMENS/OMRON |
| Electrical components | Relays, contactors, etc. SCHNEIDER make |
| Control console | Buttons, lamps, indicators, etc. |
| Air conditioner | 1 unit, GELI brand |
| Printer | 1 unit, EPSON or equivalent |
| Computer with control software | 1 unit |
| Uninterrupted Power Supply | on request |
| Pneumatic system | 1 set |
| Air-compressor | 0.6MPA |
| Triplet(oil-water separator) | 1 set with a back-up spare |
| Solenoid valve | 1 set with multiple contactor coils |
| Documentation | 1 set |
| Spare parts | included |
| Operation guide | included |
| Maintenance brochure | included |
| Electrical diagram/circuit | included |
