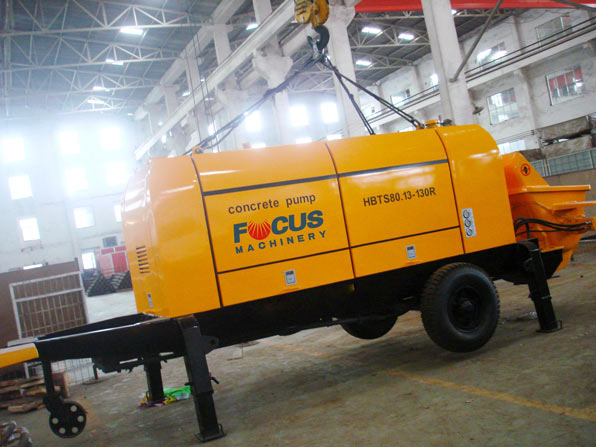

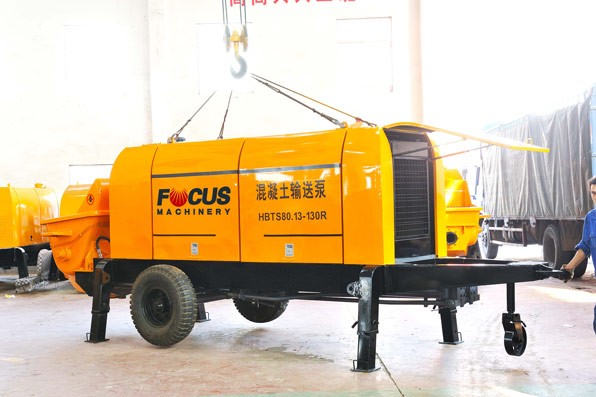

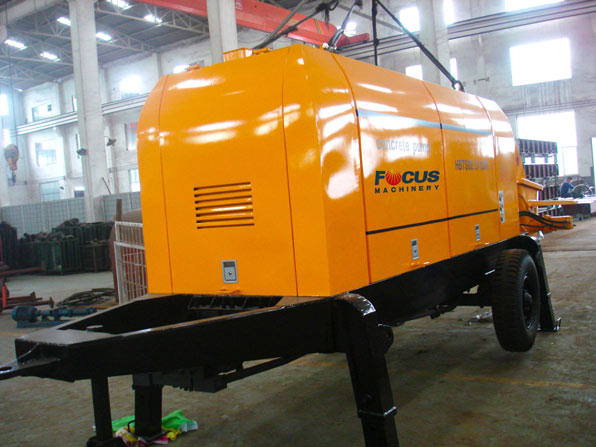

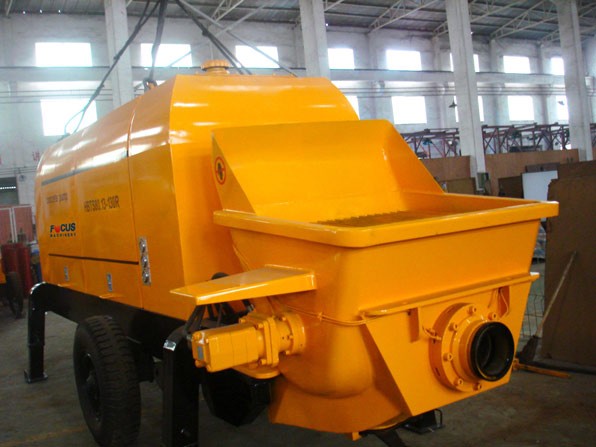

Trailer Pump With Diesel Engine

Famous brand engine guarantee strong and stable power;

German Deutz main hydraulic pumps and valves;

Open hydraulic system with tri-pump and two circuit adopted;

High-pressure delivery pipes.

Get A Price Now! Chat Online Product Video

Description Parameter Related Products Get In Touch
Description

Sizes of FOCUS Electric and Diesel Trailer mounted line pump:
JBT30 concrete pump with mixer, HBTS30 small trailer mounted line pump, HBTS40 small trailer mounted line pump, HBTS60 Electric Trailer mounted line pump, HBTS60 Diesel trailer mounted line pump, HBTS80 Electric trailer mounted line pump, HBTS80 Diesel Trailer mounted line pump.

Trailer Pump With Diesel Engine



Why would our clients choose FOCUS trailer mounted line pump?

FOCUS trailer mounted line pump is categorized into two types of engine powered: electric motor and diesel engine. Main features are as follows:

01

Open hydraulic system with tri-pump and two circuit is adopted in the concrete pump, constant power control and pressure cut-off control can promise a multistage and reliable main pump.

02

High quality hydraulic components and valves use German REXROTH.

03

The equipped leading overflow valve makes the overflow to be safer, the main pumping circuit and S valve circuit of the trailer mounted line pump are independent to each other, which makes the working system reliable and the changeover steady.



What are the main features of FOCUS trailer mounted concrete pump?
*Power system of trailer mounted line pump
Main hydraulic pumps are famous German REXROTH products.
Engine: German Deutz
*Electric control system of trailer mounted line pump
The reversing control of the trailer pump is electric-hydraulic type. The electric part is controlled by PLC, which is reliable, more accurate with small impact. The main oil pump is under the famous brand of Kawasaki from Japan.
Main electric elements are imported original Schneider, OMRON, Siemens, LG, etc.
*Hydraulic system of trailer mounted line pump
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.
*Pumping system of trailer mounted line pump
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.

Parameter
 Model BS25-08-56R BS30-10-56R HBTSA40-10-66R HBTSB40-10-66R HBTSC40-12-82R HBTS60-12-82R HBTS80-16-129R HBTS80-13-129R
Main oil pump Rexroth series Rexroth series Korea Kawasaki Korea Kawasaki Korea Kawasaki Korea Kawasaki Korea Kawasaki Korea Kawasaki
Main oil pump displacement (ml/r) 71 71 112 112 112 112 112×2 112×2
Theoretical displacement (cubic) high/low 25 30 40/27 40/30 40/33 60/36 85/50 85/50
engine Deli 4100 Deli 4100 Delier 66 Delier 66 Weichai Deutz 82 Deutz 82 Deutz 129 Deutz 129
Main cylinder dia./stroke (mm) Φ80/845 Φ80/845 Φ100/1300 Φ100/1300 Φ100/1200 Φ110/1300 Φ140/1800 Φ125/1650
Concrete cylinder dia./stroke (mm) Φ140/845 Φ140/845 Φ160/1300 Φ180/1300 Φ180/1200 Φ180/1300 Φ200/1800 Φ200/1650
Hydraulic hose Manuli, Italy Manuli, Italy Manuli, Italy Manuli, Italy Manuli, Italy Manuli, Italy Manuli, Italy Manuli, Italy
seal American Parker American Parker American Parker American Parker American Parker American Parker American Parker American Parker
Electronic control system Schneider Schneider Schneider Schneider Schneider Schneider Schneider Schneider
PLC unit Japan Omron Japan Omron Japan Omron Japan Omron Japan Omron Japan Omron Japan Omron Japan Omron
remote control remote control remote control remote control remote control remote control remote control remote control remote control
High and low voltage conversion no no Have Have Have Have Have Have
Valve block Beijing Huade Beijing Huade Beijing Huade Beijing Huade Beijing Huade Beijing Huade Beijing Huade Beijing Huade
Pumping distance horizontal / vertical (m) 300/120 400/160 600/180 600/180 600/180 600/180 1200/350 1000/280
Pressure gauge German imports German imports German imports German imports German imports German imports German imports German imports
Button Schneider Schneider Schneider Schneider Schneider Schneider Schneider Schneider
Lubrication system Fully automatic hydraulic Fully automatic hydraulic Fully automatic hydraulic Fully automatic hydraulic Fully automatic hydraulic Fully automatic hydraulic Fully automatic hydraulic Fully automatic hydraulic
Outlet pipe diameter (mm) Φ100 Φ100 Φ125 Φ150 Φ150 Φ150 Φ180 Φ180
