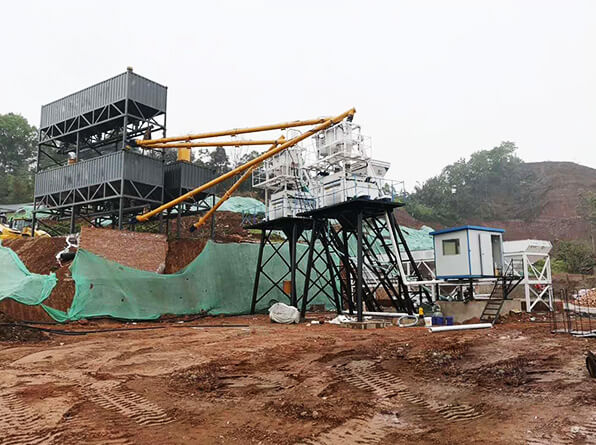

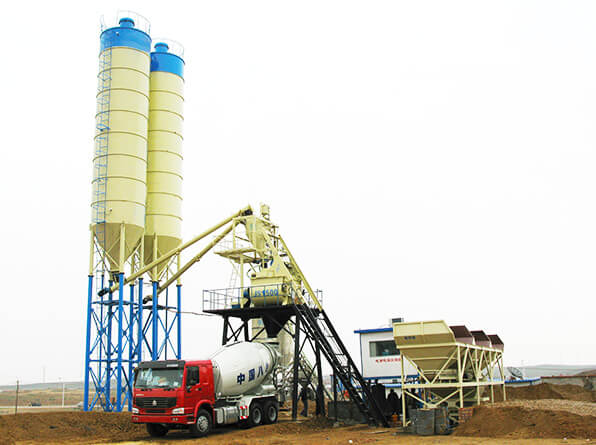

HZS75 Compact Concrete Batch Plant
Maximum aggregate diameter: 80mm
Aggregate feeding method: hoist hopper
Aggregate bins volume: 3x12m³
Additive weighing: 4000kg ±2%
Total power: 110KW
Total weight: 45T
With JS1500 double shaft compulsory horizontal concrete mixer as model HZS90, hoist hopper type concrete mixing plant HZS75 occupies much smaller area but with huge productivity, hourly output capacity can be up to 75cubic meter. With such good performance, this plant is extremely popular in projects of many fields, extensively involved in electric power, railway, highway, port, dock, precast products plant, water conservancy, commodity ready-mixed yard, construction projects and many other fields.
Main features of this concrete mixing plant:
With its lifting hopper feeding and modularized structure, this concrete plant has such characteristics as convenient installation/removal, lower manpower cost, easier to operate, convenient and simple to maintain, fewer to invest and need fewer place, etc.
Unique lifting mechanism, start and stop smoothly, long service life of steel wire rope.
Lifting system has multi-safty devices like loose rope, exceed limit position and fall-down protection.

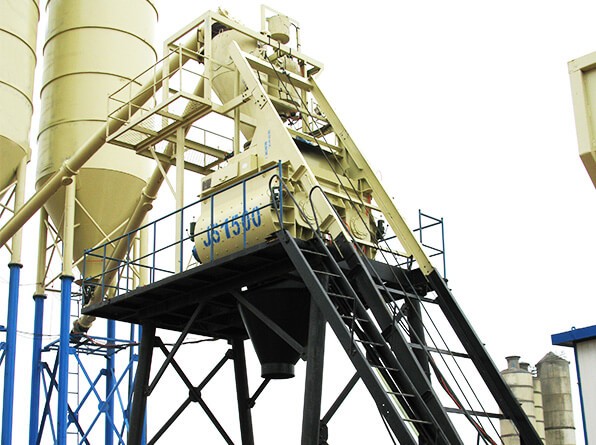

JS1000 mixer adopts special steel material, streamlined design, improve the mixing efficiency greatly; Shaft end is with multiple rubber seal, floating seal, pneumatic seal and high hardness wear resistant materials; Advanced hydraulic drive, manual dual mode, safe and reliable operation.
Full automatic control (central computer+PLC) and semi-auto control(with metering control console) can be chosen, the latter one cost lower budget, both of them have control cabin with AC, electrical panels, etc.
Heating system and ice plant could be adopted into this plant in severely cold and hot environments.
Cement silos can be fabricated in pieces for convenient container transport, after arriving clients' construction site, the silo could be connected by bolts and other materials as a whole piece.
Electrical components are all world famous brand, could work for long time, convenient to operate, maintain and replace. Full auto control applies the latest design for electronic weighing, computer control and digital display. The electronic dosing system has a buffer device and automatic volume compensation with high meter precision.
|Productivity in theory||75m³/h|
|Maximum aggregate diameter||80mm|
|Aggregate feeding method||hoist hopper|
|Aggregate bins volume||3x12m³|
|Aggregate weighing||4000kg ±2%|
|Cement weighing||800kg ±1%|
|Fly-ash weighing||500kg ±1%|
|Water weighing||500kg ±1%|
|Additive weighing||50kg ±1%|
|Overall dimension(during operating) (LXWXH)||25.9mX9.2mX11.8m|
|Control||Fully automatic central or semi auto|
|Cement silo(optional)||On request|
|Cement screw(optional)||On request|
1. Please ask detailed configuration from our sales reps.
2. The power figure doesn't include the power of cement silo and screw;
3. Non-standard design could be made according to clients' demand;
4. The above-mentioned data could be changed due to the technical&design upgrade, please check the updated parameter when purchasing.
