YHZS35 Mobile Concrete Batching Plant

Control system: Auto computer control, 1 set
PLC brand: SIMENS/OMRON
Electrical components: Relays, contactors, etc. SCHNEIDER make
Control console: Buttons, lamps, indicators, etc.
Air conditioner: 1 unit, GELI brand
Printer: 1 unit, EPSON or equivalent
Computer with control software: 1 unit

获取价格! 在线聊天产品视频

描述参数相关产品获取价格

Description

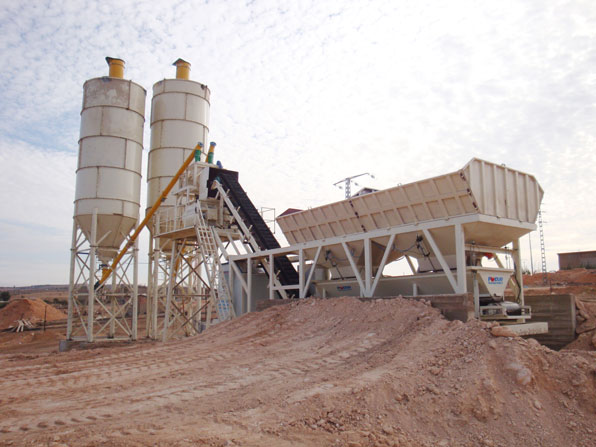

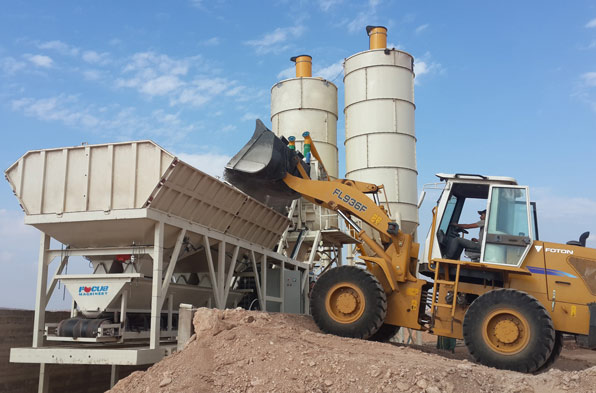

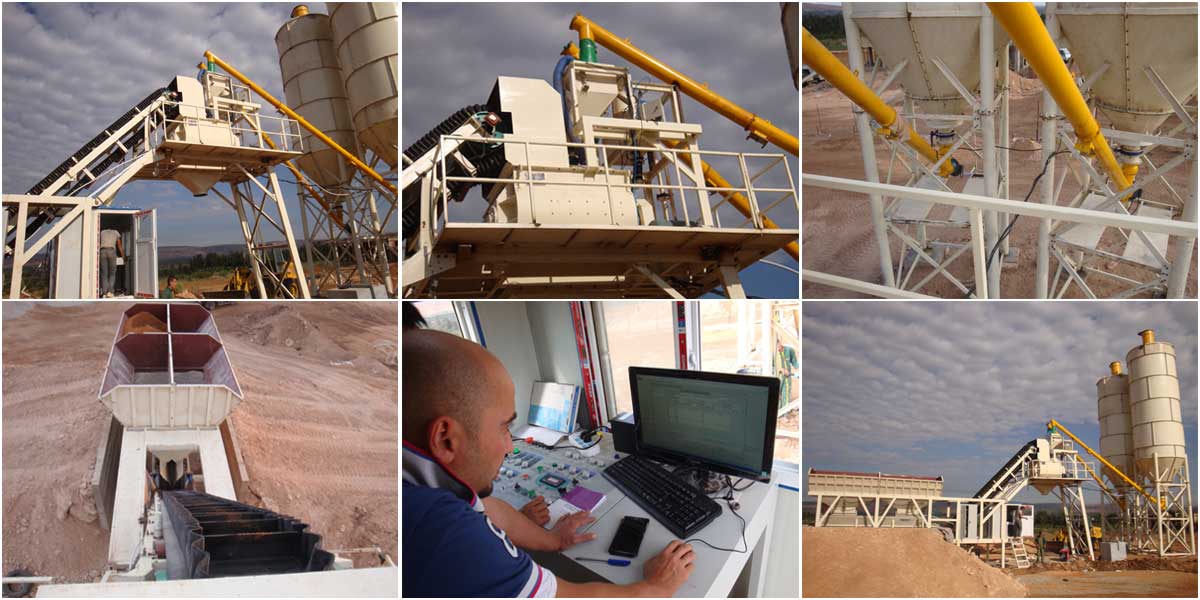

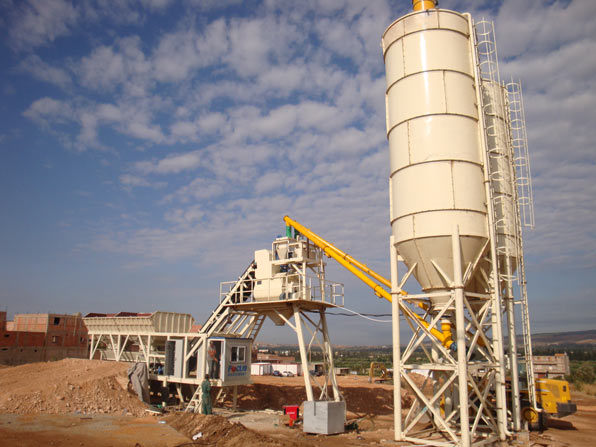

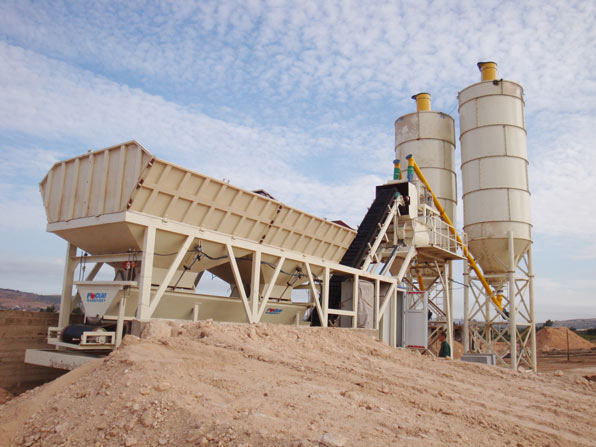

YHZS35 mobile concrete batching plant consists of feeding system(feeding hopper), weighing system, conveying system, mixing system, discharging system and other accessories to form a complete mixing equipment.

It is a small model of mobile concrete batching plant(35m3 output capacity per hour), widely used in construction projects such as bridge, road, buildings, short distance railway, dams, etc.

Features of YHZS35 Mobile Concrete Batching Plant:

Quick and simple installation(1 day needed);

Cost-effective transportation(one truck trailer needed);

Can be used as foundation-free plant, no complex foundation needed;

Fast and easy worksite relocation;

Low maintenance and simple operation;

High production performance as equipped with our JS750 twin-shaft concrete mixer.

Parameter

Model	YHZS35
Output capacity	35m³/h
Overall power	60kw
Discharge height	3800mm
Max. hauling speed	40km/h
warranty	13months after commissioning
After-sale service	Guidance on erecting, commissioning and operator training, 24/7 technical assistance afterwards
Concrete mixer	JS750
Motor power	30kw
Mixing circle	72s
Discharge volume	750L
Max. aggregate dia.	80mm
Aggregate batcher	PLD1200
Storage hopper	2, 3 or 4 sorts
Weighing hopper	1200L
Aggregate weighing precision	±2%
Aggregate feeder	Belt conveyor
Cement	±1%
Water	±1%
Additive	±1%
Control system	Auto computer control, 1 set
PLC brand	SIMENS/OMRON
Electrical components	Relays, contactors, etc. SCHNEIDER make
Control console	Buttons, lamps, indicators, etc.
Air conditioner	1 unit, GELI brand
Printer	1 unit, EPSON or equivalent
Computer with control software	1 unit
Uninterrupted Power Supply	1 unit
Pneumatic system	1 set
Air-compressor	0.6MPA
Triplet(oil-water separator)	1 set with a back-up spare
Solenoid valve	1 set with multiple contactor coils
Documentation	1 set
Spare parts	included
Operation guide	included
Maintenance brochure	included
Electrical diagram/circuit	included
