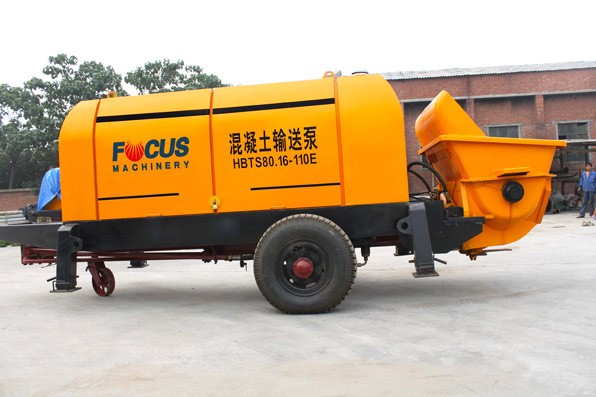

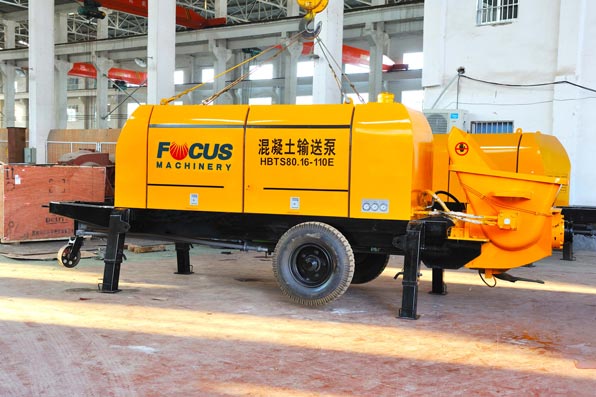

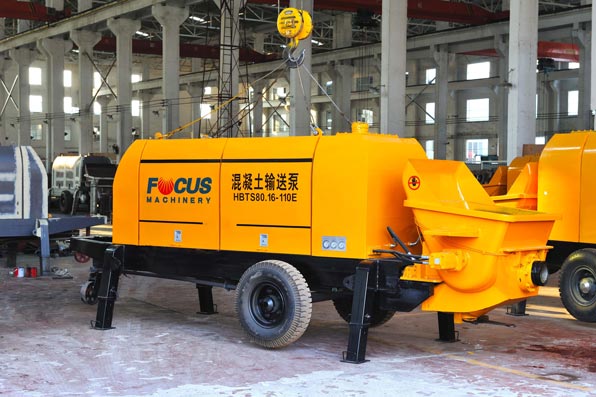

Trailer Pump With Electric Motor
JBT30 concrete pump with mixer, HBTS30 small trailer mounted line pump, HBTS40 small trailer mounted line pump, HBTS60 Electric Trailer mounted line pump, HBTS60 Diesel trailer mounted line pump, HBTS80 Electric trailer mounted line pump, HBTS80 Diesel Trailer mounted line pump.
Sizes of FOCUS Electric and Diesel Trailer mounted line pump:
JBT30 concrete pump with mixer, HBTS30 small trailer mounted line pump, HBTS40 small trailer mounted line pump, HBTS60 Electric Trailer mounted line pump, HBTS60 Diesel trailer mounted line pump, HBTS80 Electric trailer mounted line pump, HBTS80 Diesel Trailer mounted line pump.
Why would our clients choose FOCUS trailer mounted line pump?
FOCUS trailer mounted line pump is categorized into two types of engine powered: electric motor and diesel engine. Main features are as follows:
Open hydraulic system with tri-pump and two circuit is adopted in the concrete pump, constant power control and pressure cut-off control can promise a multistage and reliable main pump.
High quality hydraulic components and valves use German REXROTH.
The equipped leading overflow valve makes the overflow to be safer, the main pumping circuit and S valve circuit of the trailer mounted line pump are independent to each other, which makes the working system reliable and the changeover steady.
What are the main features of FOCUS trailer mounted concrete pump?
*Power system of trailer mounted line pump
Main hydraulic pumps are famous German REXROTH products.
Engine: German Deutz
*Electric control system of trailer mounted line pump
The reversing control of the trailer pump is electric-hydraulic type. The electric part is controlled by PLC, which is reliable, more accurate with small impact. The main oil pump is under the famous brand of Kawasaki from Japan.
Main electric elements are imported original Schneider, OMRON, Siemens, LG, etc.

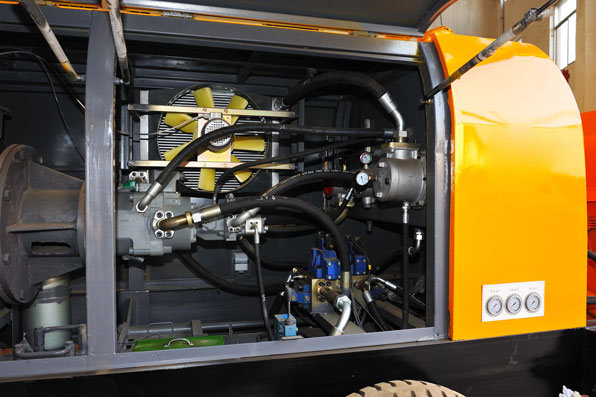

*Hydraulic system of trailer mounted line pump
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.
*Pumping system of trailer mounted line pump
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.
| Model | BS25E | BS30D | HBTS40-13-45 | HBTS40-13-55 | HBTS60-13-90 | HBTS80-13-90 | HBTS80-16-110 |
| Main oil pump | Rexroth series | Korea Kawasaki | Korea Kawasaki | Korea Kawasaki | Korea Kawasaki | Korea Kawasaki | Korea Kawasaki |
| Main oil pump displacement (ml/r) | 71 | 112 | 112 | 112 | 112×2 | 112×2 | 140×2 |
| Hourly workload (cubic) | 25 | 30 | 40 | 40 | 60 | 80 | 80 |
| Motor Power | 37 | 37 | 45 | 55 | 90 | 90 | 110 |
| Main cylinder dia./stroke (mm) | Φ80/845 | Φ80/845 | Φ100/1100 | Φ100/1100 | Φ125/1650 | Φ125/1650 | Φ140/1800 |
| Concrete cylinder dia./stroke (mm) | Φ140/845 | Φ140/845 | Φ160/1100 | Φ160/1100 | Φ200/1650 | Φ200/1650 | Φ200/1800 |
| Hydraulic hose | Manuli, Italy | Manuli, Italy | Manuli, Italy | Manuli, Italy | Manuli, Italy | Manuli, Italy | Manuli, Italy |
| seal | American Pike | American Pike | American Pike | American Pike | American Pike | American Pike | American Pike |
| Electronic control system | Schneider | Schneider | Schneider | Schneider | Schneider | Schneider | Schneider |
| PLC unit | Japan Omron | Japan Omron | Japan Omron | Japan Omron | Japan Omron | Japan Omron | Japan Omron |
| remote control | remote control | remote control | remote control | remote control | remote control | remote control | remote control |
| High and low voltage conversion | no | no | Have | Have | Have | Have | Have |
| Valve block | Beijing Huade | Beijing Huade | Beijing Huade | Beijing Huade | Beijing Huade | Beijing Huade | Beijing Huade |
| Pumping distance horizontal / vertical (m) | 400/120 | 400/140 | 600/200 | 600/220 | 800/180 | 800/200 | 1000/250 |
| Pressure gauge | German imports | German imports | German imports | German imports | German imports | German imports | German imports |
| Button | Schneider | Schneider | Schneider | Schneider | Schneider | Schneider | Schneider |
| Lubrication system | Fully automatic hydraulic | Fully automatic hydraulic | Fully automatic hydraulic | Fully automatic hydraulic | Fully automatic hydraulic | Fully automatic hydraulic | Fully automatic hydraulic |
| Outlet pipe diameter (mm) | Φ100 | Φ100 | Φ125 | Φ125 | Φ180 | Φ180 | Φ180 |
