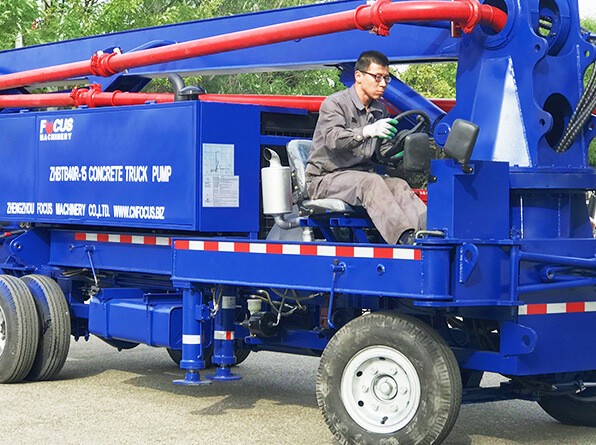

Concrete Boom Pump With Tractor

Max. Pumping capacity (Low pressure/High pressure): 40 m3/h

Max. Concrete pumping pressure (High pressure/ Low pressure): 10 MPa

Distribution valve type: S Valve

Oil Pump: FLUTEK Kawasaki K3V112

Concrete cylinder diameter×stroke: Ф180×1300 mm

Get A Price Now! Chat Online Product Video

Description Parameter Related Products Get In Touch
Description

Traditional Concrete Boom Pump always has the characters of high cost, occupying large area during operation, etc. FOCUS newly developed Boom Pump with Tractor Head solved these problems.

With 32HP driving power, 4x8.25 tyres, combining concrete pumping and jib swinging mechanism, our new boom pump could be used for small projects very conveniently at much lower cost.

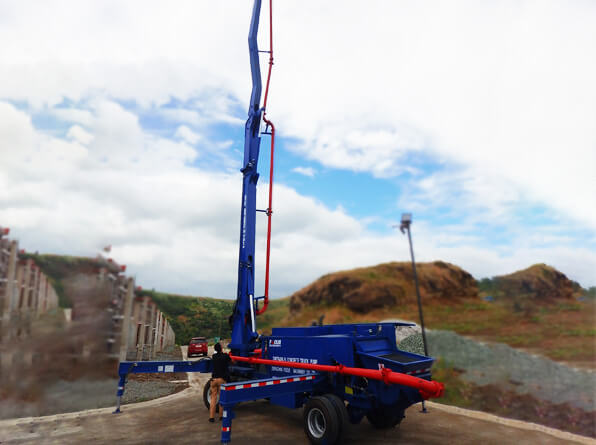

It is the ideal concrete pumping device for buildings under 4-stories, whole machine could be driven back and forth, jibs could be easily stretched up to over 18 meters-price is not even a half of the traditional boom pump.

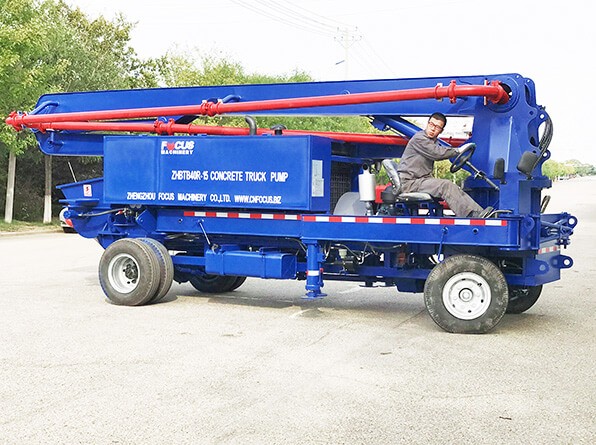

Concrete Boom Pump With Tractor

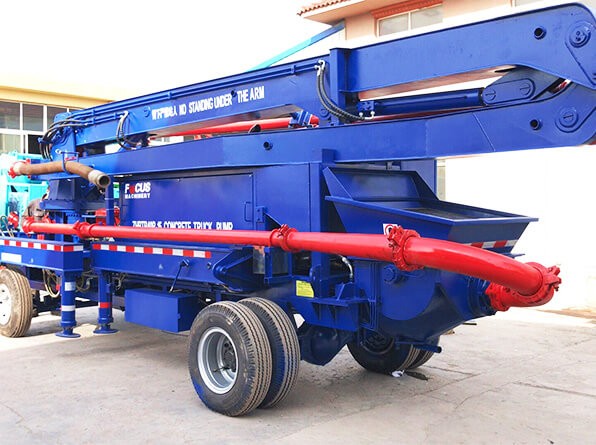

Concrete Boom Pump

Parameter
Items Units Parameters
ZHBTB40R-15
Whole performance of machine Max. Pumping capacity (Low pressure/High pressure) m3/h 40
Max. Concrete pumping pressure (High pressure/ Low pressure) MPa 10
Distribution valve type 　 S Valve
Oil Pump 　 FLUTEK Kawasaki K3V112
Concrete cylinder diameter×stroke mm Ф180×1300
Hopper capacity×feeding height L×mm 500×1300
Max. height of boom m 15.4
Max. working diameter of boom m 13
Length of the first jib m 6.5
Elevation angle of the first jib ° 90
Length of the second jib m 6.5
Elevation angle of the second jib ° 235
Rotation Angle of Gyration tower ° 200
Rubber hose mm/m 100*4
Width of stretched support legs m 5.5
Control method of boom 　 Manual
Outlet diameter mm Ф150
Power system Diesel engine 　 Cummins
Rated power KW 82
Rotate speed r/min 2100
Driving system Diesel engine 　 L32
Rated power 　 32HP
Tyre size 　 8.25-16, 4pcs
Driver cab 　 NO
Hydraulic system Circuit type 　 Open circuit
Pumping system pressure MPa 31.5
Mixing system pressure MPa 6-8
Capacity of oil tank L 370
Other parameters Max. aggregate diameter mm 40
Inside diameter of delivering pipe mm Ф100
Dimension:LxWxH mm 7500x2200x2920
Total weight kg 6500
