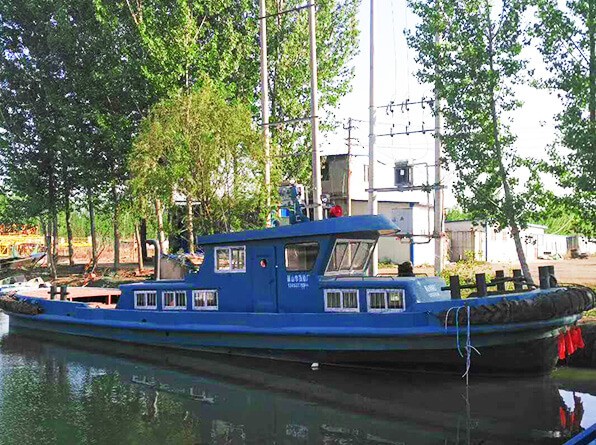

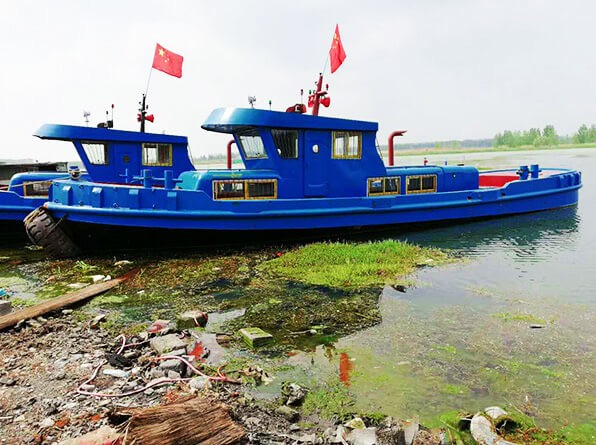

20T Marine Tug Boat
Overall length: 18m
Total width: 6.3m
Moulded depth: 2.0m
Marine lighting signal system: one full set
Marine horn / alarm system: one full set
Bollar pull: 20T
Endurance: 50 hours
Item | Tug Boat | Note | |
Main dimensions | Overall length | 18m | |
Total width | 6.3m | ||
Moulded depth | 2.0m | ||
Steel thickness and quality | Side plate | 6mm | Surface blasting and rust removal, spraying three layers of epoxy zinc-rich marine special primer, a layer of epoxy zinc-rich marine special topcoat. Zinc plate sacrificial anode anti-rust is set at key parts. |
bottom plate | 6mm | ||
deck plate | 5mm | ||
Plate material | CCSA/B Marine board | ||
Propeller(2 sets) | Type | Marine | |

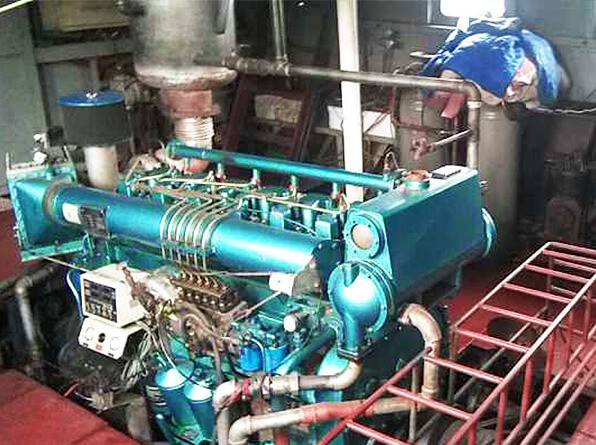

Engine | Manufacturer | CUMMINS | |
Model | NTA855-M350 | ||
Power | 237kwX2 | ||
Rotation speed | 1800r/min | ||
Generator | Origin | Shanghai | |
Output capacity | 20kw | ||
Marine positioning, communication system | Marine radar | FURUNO M 1835 | 1 set |
High frequency intercom | EHFMAINE IC-M324 | 1 set | |
Handheld high frequency walkie talkie | IC-M23 | 2 pcs | |
Marine lighting signal system: one full set; | |||
Marine horn / alarm system : one full set; | |||
Bollar pull: 20T; | |||
Endurance: 50 hours; |
